Point Of View Geforce 6800 GT - GPU NV40

Last Update: December 30, 2006

» Back To GPU Database


1 - 6800 GT: Images

2 - 6800 GT: Features

3 - 6800 GT: Links




1 - 6800 GT: Images

Source: JeGX - oZone3D.Net

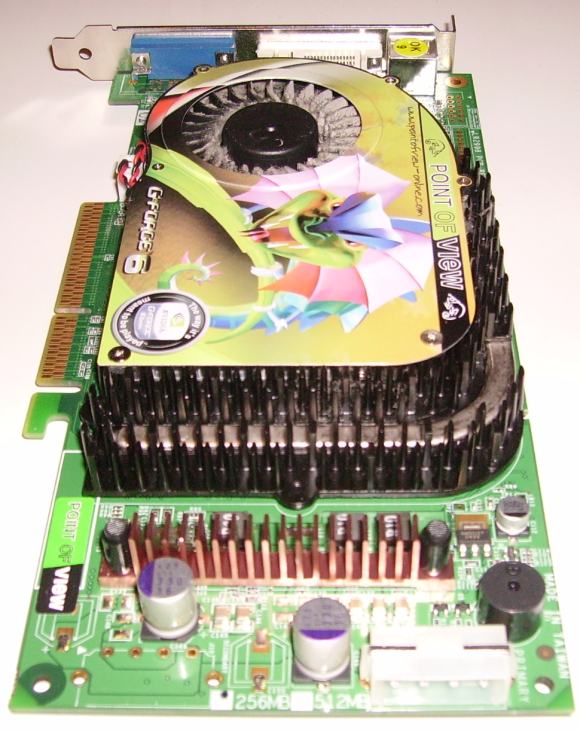

Point Of View Geforce 6800 GT

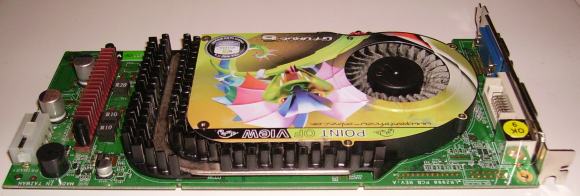

Point Of View Geforce 6800 GT

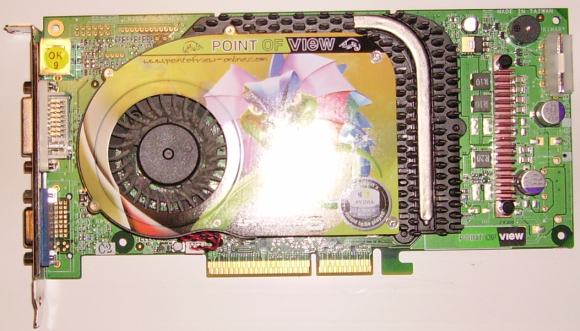

Point Of View Geforce 6800 GT

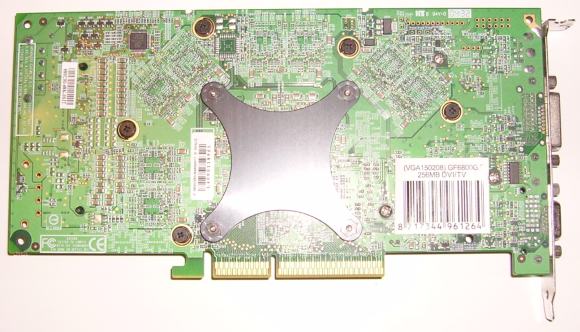

Point Of View Geforce 6800 GT

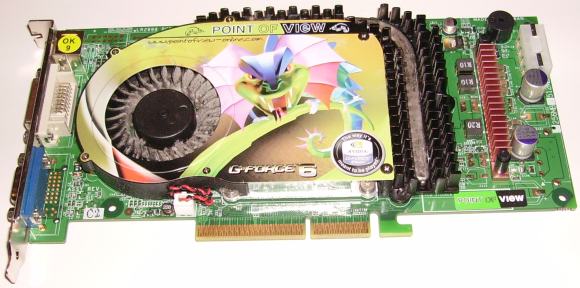

Point Of View Geforce 6800 GT

Point Of View Geforce 6800 GT





2 - 6800 GT: Features


GPUNV40
GPU Frequency350 MHz
Memory Frequency500 MHz DDR or 1000 MHz
Memory TypeGDDR3
Memory Size256M
Vertex Pipelines6
Pixel Pipelines16
Vertex Shader Model3.0
Pixel Shader Model3.0
ROPs16
Texture Units16
Texture Max Size4096x4096
Max Anisotropic Value16.0
SlotAGP
