MSI Geforce 7950 GT - GPU G71

Last Update: January 3, 2006

» Back To GPU Database


1 - 7950 GT: Images

2 - 7950 GT: Features

3 - 7950 GT: Benchmarks

4 - 7950 GT: OpenGL Extensions

5 - 7950 GT: Useful Links

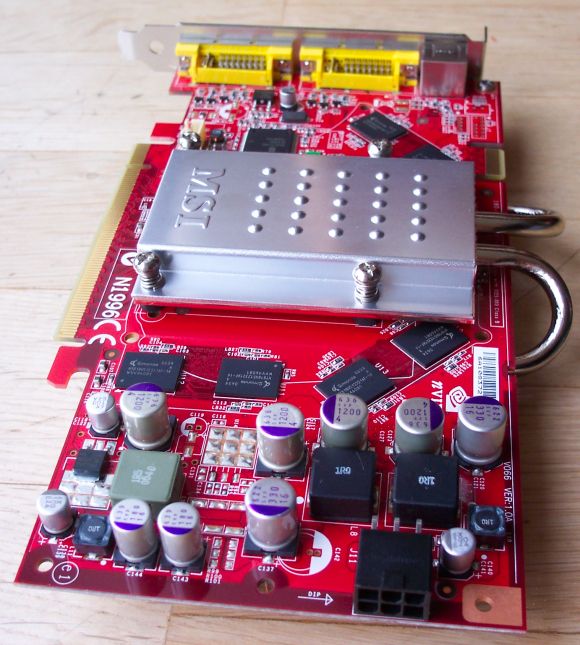

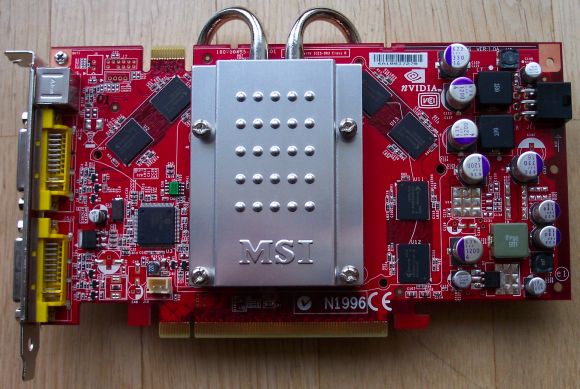

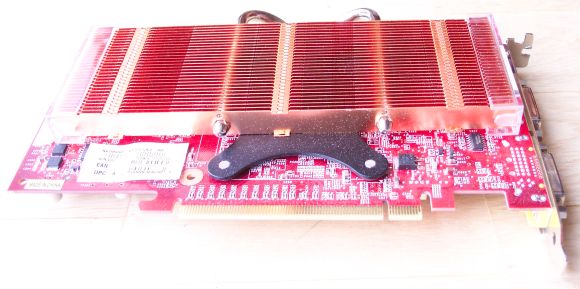

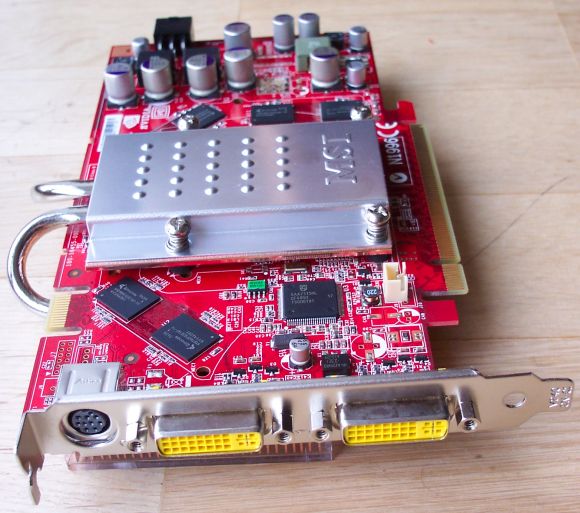

1 - 7950 GT: Images

Source: Zoll & Schürmann GbR - www.zunds.de

MSI nVidia Geforce 7950 GT

MSI nVidia Geforce 7950 GT

MSI nVidia Geforce 7950 GT

MSI nVidia Geforce 7950 GT

MSI nVidia Geforce 7950 GT



2 - 7950 GT: Features


GPUG71
GPU Frequency550 MHz
Memory Frequency700MHZ DDR or 1400 MHz
Memory TypeGDDR3
Memory Size512M
Vertex Pipelines8
Pixel Pipelines24
Vertex Shader Model3.0
Pixel Shader Model3.0
ROPs16
Texture Units16
Texture Max Size4096x4096
Max Anisotropic Value16.0
SlotPCI-Express


3 - 7950 GT: Benchmarks


Soft Shadows Benchmark - v1.4.0
[ DOWNLOAD: Soft Shadows Benchmark Page ]

Dynamic Brancing: OFF - Score: 1287 o3Marks - Forceware 93.71






4 - 7950 GT: OpenGL Extensions

Number of Extensions: 133 - Forceware 93.71

You can use the HardwareInfo to get the OpenGL extensions list.

  • GL_ARB_color_buffer_float
  • GL_ARB_depth_texture
  • GL_ARB_draw_buffers
  • GL_ARB_fragment_program
  • GL_ARB_fragment_program_shadow
  • GL_ARB_fragment_shader
  • GL_ARB_half_float_pixel
  • GL_ARB_imaging
  • GL_ARB_multisample
  • GL_ARB_multitexture
  • GL_ARB_occlusion_query
  • GL_ARB_pixel_buffer_object
  • GL_ARB_point_parameters
  • GL_ARB_point_sprite
  • GL_ARB_shadow
  • GL_ARB_shader_objects
  • GL_ARB_shading_language_100
  • GL_ARB_texture_border_clamp
  • GL_ARB_texture_compression
  • GL_ARB_texture_cube_map
  • GL_ARB_texture_env_add
  • GL_ARB_texture_env_combine
  • GL_ARB_texture_env_dot3
  • GL_ARB_texture_float
  • GL_ARB_texture_mirrored_repeat
  • GL_ARB_texture_non_power_of_two
  • GL_ARB_texture_rectangle
  • GL_ARB_transpose_matrix
  • GL_ARB_vertex_buffer_object
  • GL_ARB_vertex_program
  • GL_ARB_vertex_shader
  • GL_ARB_window_pos
  • GL_ATI_draw_buffers
  • GL_ATI_texture_float
  • GL_ATI_texture_mirror_once
  • GL_S3_s3tc
  • GL_EXT_texture_env_add
  • GL_EXT_abgr
  • GL_EXT_bgra
  • GL_EXT_blend_color
  • GL_EXT_blend_equation_separate
  • GL_EXT_blend_func_separate
  • GL_EXT_blend_minmax
  • GL_EXT_blend_subtract
  • GL_EXT_compiled_vertex_array
  • GL_EXT_Cg_shader
  • GL_EXT_depth_bounds_test
  • GL_EXT_draw_range_elements
  • GL_EXT_fog_coord
  • GL_EXT_framebuffer_object
  • GL_EXT_multi_draw_arrays
  • GL_EXT_packed_depth_stencil
  • GL_EXT_packed_pixels
  • GL_EXT_pixel_buffer_object
  • GL_EXT_point_parameters
  • GL_EXT_rescale_normal
  • GL_EXT_secondary_color
  • GL_EXT_separate_specular_color
  • GL_EXT_shadow_funcs
  • GL_EXT_stencil_two_side
  • GL_EXT_stencil_wrap
  • GL_EXT_texture3D
  • GL_EXT_texture_compression_s3tc
  • GL_EXT_texture_cube_map
  • GL_EXT_texture_edge_clamp
  • GL_EXT_texture_env_combine
  • GL_EXT_texture_env_dot3
  • GL_EXT_texture_filter_anisotropic
  • GL_EXT_texture_lod
  • GL_EXT_texture_lod_bias
  • GL_EXT_texture_mirror_clamp
  • GL_EXT_texture_object
  • GL_EXT_texture_sRGB
  • GL_EXT_timer_query
  • GL_EXT_vertex_array
  • GL_IBM_rasterpos_clip
  • GL_IBM_texture_mirrored_repeat
  • GL_KTX_buffer_region
  • GL_NV_blend_square
  • GL_NV_copy_depth_to_color
  • GL_NV_depth_clamp
  • GL_NV_fence
  • GL_NV_float_buffer
  • GL_NV_fog_distance
  • GL_NV_fragment_program
  • GL_NV_fragment_program_option
  • GL_NV_fragment_program2
  • GL_NV_half_float
  • GL_NV_light_max_exponent
  • GL_NV_multisample_filter_hint
  • GL_NV_occlusion_query
  • GL_NV_packed_depth_stencil
  • GL_NV_pixel_data_range
  • GL_NV_point_sprite
  • GL_NV_primitive_restart
  • GL_NV_register_combiners
  • GL_NV_register_combiners2
  • GL_NV_texgen_reflection
  • GL_NV_texture_compression_vtc
  • GL_NV_texture_env_combine4
  • GL_NV_texture_expand_normal
  • GL_NV_texture_rectangle
  • GL_NV_texture_shader
  • GL_NV_texture_shader2
  • GL_NV_texture_shader3
  • GL_NV_vertex_array_range
  • GL_NV_vertex_array_range2
  • GL_NV_vertex_program
  • GL_NV_vertex_program1_1
  • GL_NV_vertex_program2
  • GL_NV_vertex_program2_option
  • GL_NV_vertex_program3
  • GL_NVX_conditional_render
  • GL_SGIS_generate_mipmap
  • GL_SGIS_texture_lod
  • GL_SGIX_depth_texture
  • GL_SGIX_shadow
  • GL_SUN_slice_accum
  • GL_WIN_swap_hint
  • WGL_EXT_swap_control
  • WGL_ARB_buffer_region
  • WGL_ARB_extensions_string
  • WGL_ARB_make_current_read
  • WGL_ARB_multisample
  • WGL_ARB_pbuffer
  • WGL_ARB_pixel_format
  • WGL_ARB_render_texture
  • WGL_ATI_pixel_format_float
  • WGL_EXT_extensions_string
  • WGL_EXT_swap_control
  • WGL_NV_float_buffer
  • WGL_NV_render_depth_texture
  • WGL_NV_render_texture_rectangle
