HIS Radeon 9800 pro - GPU R350

Last Update: December 30, 2006


» Back To GPU Database


1 - Radeon 9800 Pro: Images

2 - Radeon 9800 Pro: Features

3 - Radeon 9800 Pro: Links

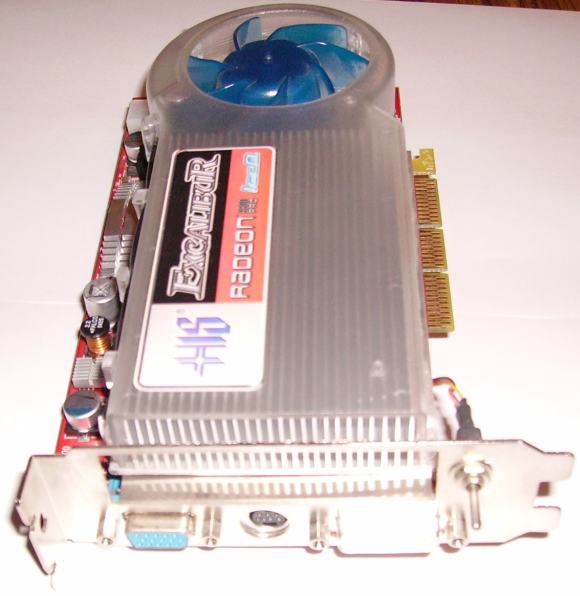

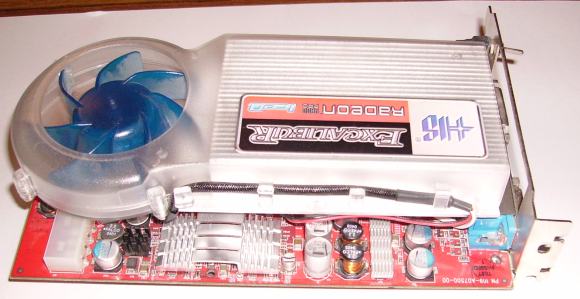

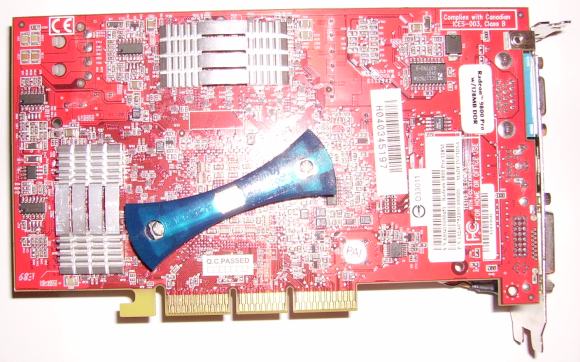

1 - Radeon 9800 Pro: Images

Source: JeGX - oZone3D.Net

HIS ATI Radeon 9800 Pro

HIS ATI Radeon 9800 Pro

HIS ATI Radeon 9800 Pro

HIS ATI Radeon 9800 Pro

HIS ATI Radeon 9800 Pro





2 - Radeon 9800 Pro: Features


GPUR350
GPU Frequency380 MHz
Memory Frequency340 MHz DDR or 680 MHz
Memory TypeGDDR
Memory Size128M
Vertex Pipelines4
Pixel Pipelines8
Vertex Shader Model2.0
Pixel Shader Model2.0
ROPs8
Texture Units16
Texture Max Size2048x2048
Max Anisotropic Value8.0
SlotAGP
