5 - X1950 XTX: Features / GPU Info

GPU	R580+
Designation	GV-RX195X512VB-RH
Transistors Count	384 million
Manufacturing Process	90 nm
GPU Frequency	648 MHz
Memory Frequency	999 MHz
Memory Type	GDDR4
Memory Interface	256 bits
Memory Size	512Mb
Shader Model Version	3.0
OpenGL Version	2.0
Direct3D Version	9.0
Vertex Pipelines	8
Pixel Pipelines	48
ROPs	16
Texture Units	16
Texture Max Size	4096x4096
FSAA	2X / 4X / 6X
Slot	PCI-Express

This GIGABYTE's X1950XTX follows the regular clock values for R580+ GPU: 650MHz for the GPU core and 1000MHz for the memory.

RivaTuner Report:


$ffffffffff ----------------------------------------------------------------
$ffffffffff Display adapter information
$ffffffffff ----------------------------------------------------------------
$0000000000 Description               : Radeon X1950 Series
$0000000001 Vendor ID                 : 1002 (ATI)
$0000000002 Device ID                 : 7240
$0000000003 Location                  : bus 7, device 0, function 0
$0000000004 Bus type                  : PCIE
$000000000f PCIE link width           : 16x supported, 16x selected
$0000000009 Base address 0            : d0000000 (memory range)
$000000000a Base address 1            : none
$000000000b Base address 2            : febf0000 (memory range)
$000000000c Base address 3            : none
$000000000d Base address 4            : 0000e000 (I/O range)
$000000000e Base address 5            : none

$ffffffffff ----------------------------------------------------------------
$ffffffffff ATI specific display adapter information
$ffffffffff ----------------------------------------------------------------
$0900000000 Graphics core             : R580+ (16tmu)
$0900000002 Memory bus                : 256-bit
$0900000001 Memory type               : DDR4 SGRAM
$0900000003 Memory amount             : 512MB
$0900000004 Core clock                : 506.250MHz
$0900000005 Memory clock              : 594.000MHz (1188.000MHz effective)
$0900000006 Reference clock           : 27.000MHz

$ffffffffff ----------------------------------------------------------------
$ffffffffff ATI VGA BIOS information
$ffffffffff ----------------------------------------------------------------
$0a00000000 Title                     : A91501 X1950XTX BIOS
$0a00000001 Date/time                 : 07/26/06 12:38
$0a00000002 Core clock                : 508.000MHz
$0a00000003 Memory clock              : 600.000MHz
$0a00000004 Reference clock           : 27.000MHz

ATITool:

Core Clock: 648MHz
Memory Clock: 999MHz

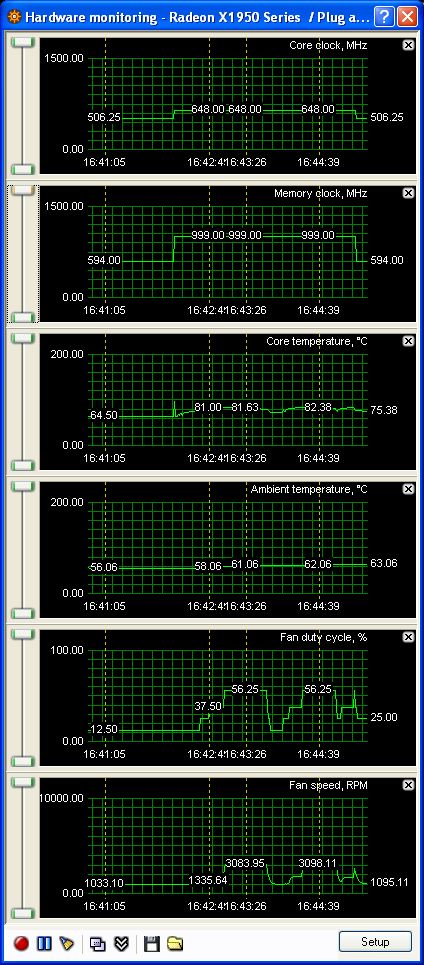

Here are the changes of the different parameters during the execution of the ATITool's 3D View:

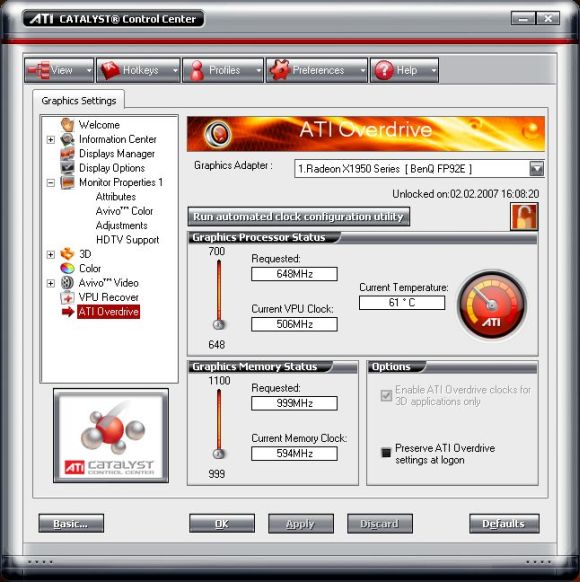

Catalyst 7.1 Control Panel - Overdrive section:
